HTML拖放API快速上手

最近在写一个网页拖放的小东西，一开始是以为要监听鼠标的点击移动和释放事件，后来查询发现不用那么麻烦，浏览器提供了内置的Drag 和 Drop API

Grag & Drop

工作原理

给需要拖拽的元素添加以下代码：

 <div
      draggable="true"
      ondrag="handleDrag"
  />

可放置区域(即接受拖拽元素的元素)

<div
     ondragover="handleGragover"
     ondrop="handleDrop"
 />

// 同时阻止默认的点击事件
// 原因：浏览器对默认的拖拽事件是禁止的
e.preventDefault()

ondrag

拖拽开始

可存放拖拽数据，例如元素ID

ondragover

进入放置区域

可进行更改样式等操作

ondrop

元素放置时

对拖拽元素进行真实的移动

Demo

实现一个简单的页面文件和元素的拖拽

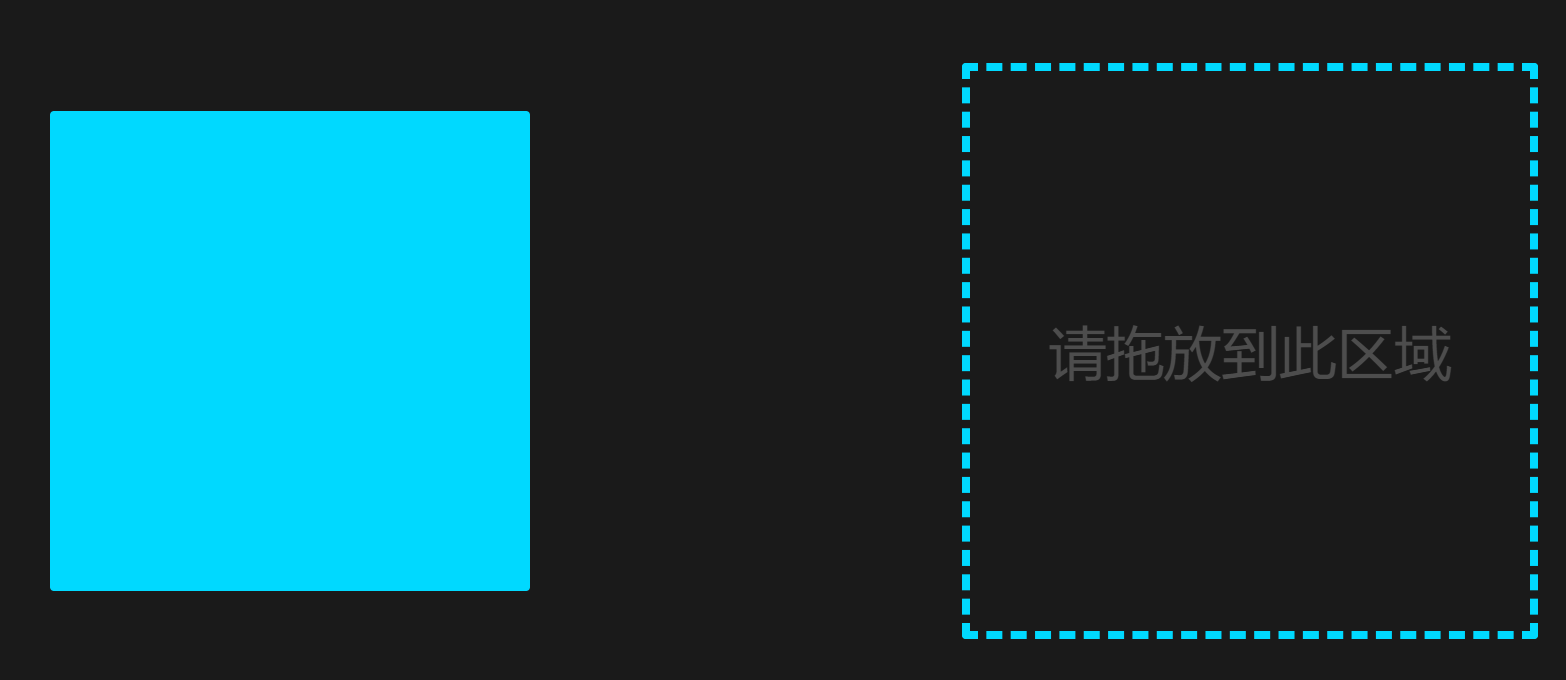

实现效果

• 对于元素

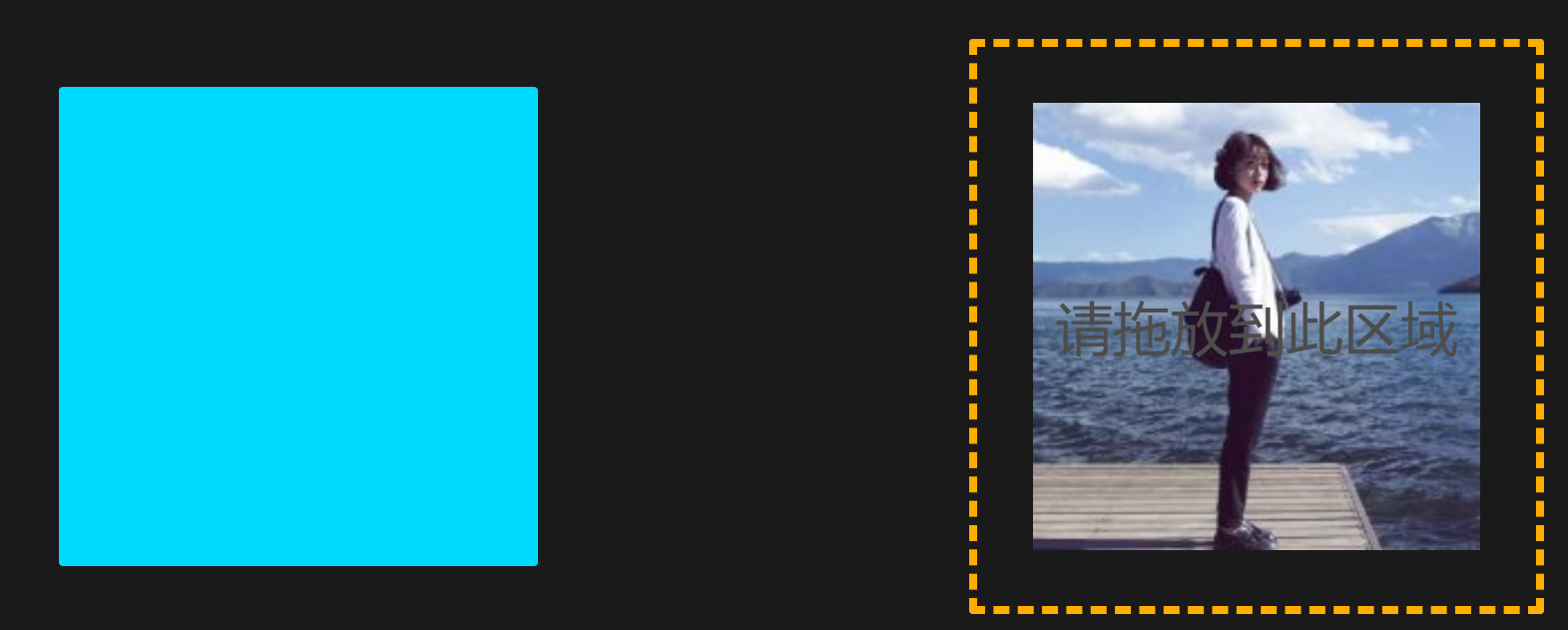

• 对于图片

代码实现

• HTML

      <main>
          <div class="draggable-container">
              <div id="draggable" class="draggable" draggable="true"></div>
          </div>
          <div id="droppable" class="droppable"></div>
      </main>


• CSS

  *{
      box-sizing: border-box;
      padding: 0;
      margin: 0;
  }
  main{
      width: 100vw;
      height: 100vh;
      display: grid;
      grid-template-columns: 1fr 1fr;
      place-items: center;
      background-color: hsl(0deg, 0%, 10%);
  }
  .draggable-container {
      width: 100%;
      height: 100%;
      display: grid;
      place-items: center;
  }

  .draggable,
  .droppable {
      border-radius: 4px;
  }

  .draggable {
      width: 25vw;
      height: 25vw;
      background-color: #00d9ff;
  }


  .droppable {
      width: 30vw;
      height: 30vw;
      border: 8px dashed #00d9ff;
      position: relative;
      display: grid;
      place-items: center;
  }

  .droppable::before {
      display: block;
      content: "请拖放到此区域";
      position: absolute;
      color: white;
      font-family: sans-serif;
      font-size: 3vw;
      color: hsl(0, 0%, 30%);
  }

  .droppable img {
      width: 80%;
      height: 80%;
      object-fit: contain;
  }

  .dragover {
      border: 8px dashed #ffae00;
  }
  .dropped {
      border: 8px dashed #48ff00;
  }
  .dropped::before {
      z-index: -1;
  }


• JS

          const draggable = document.getElementById('draggable');
          const droppable = document.getElementById('droppable');

          draggable.addEventListener('dragstart', handleDragStart);
          droppable.addEventListener('dragover', handleDragover);
          droppable.addEventListener('dragleave', handleDragLeave);
          droppable.addEventListener('drop', handleDrop);


          function handleDragStart(e) {
              e.dataTransfer.setData('text/plain', e.target.id)
          }

          function handleDragover(e) {
              e.preventDefault();
              droppable.classList.add('dragover');
          }

          function handleDragLeave(e) {
              droppable.classList.remove('dragover')
          }

          function handleDrop(e) {
              e.preventDefault();

              // 如果是文件
              [ ...e.dataTransfer.items].forEach((item)=>{
                  if (item.kind === "file") {
                      const file = item.getAsFile();
                      createPreview(file);
                  }
              })

              // 如果是元素
              const draggedid = e.dataTransfer.getData("text/plain");
              droppable.appendChild(document.getElementById(draggedid));
              droppable.classList.add('dropped');
          }

          function createPreview(imageFile) {
              if (!imageFile.type.startsWith("image/")) {
                  return;
              }
              const image = document.createElement("img");
              image.src = URL.createObjectURL(imageFile);
              image.onload = function() {
                  URL.revokeObjectURL(this.src);
              }
              droppable.appendChild(image);

          }
